High Flexible Amaid Yarn ADSS Optical Cable 6 Core Non Metallic Fiber Optic Cable

Name: High Flexible Amaid Yarn ADSS Optical Cable 6 Core Non Metallic Fiber Optic Cable
Brand: MingTong
Price: 500 USD

Quality High Flexible Amaid Yarn ADSS Optical Cable 6 Core Non Metallic Fiber Optic Cable for sale

Brand Name : MingTong

Certification : ISO

Place of Origin : Dongguan CHINA

Price : 500-5000RNB/KM

Payment Terms : L/C,T/T

Delivery Time : It depends on the actual situation

MOQ : 20km

Packaging Details : Wooden scroll + cardboard box / Wooden scroll + wooden board

Supply Ability : 200km/Day

Name : ADSS Optical Cable

Model No : ADSS

Loose Tube Material& Filling Material : PBT&Jerry

Central Strength Member : Non-Metallic

Strength Material : High Flexible Amaid Yarn

Core Moisture Protection Methodology : Water Blocking Tape Or Filling Compound

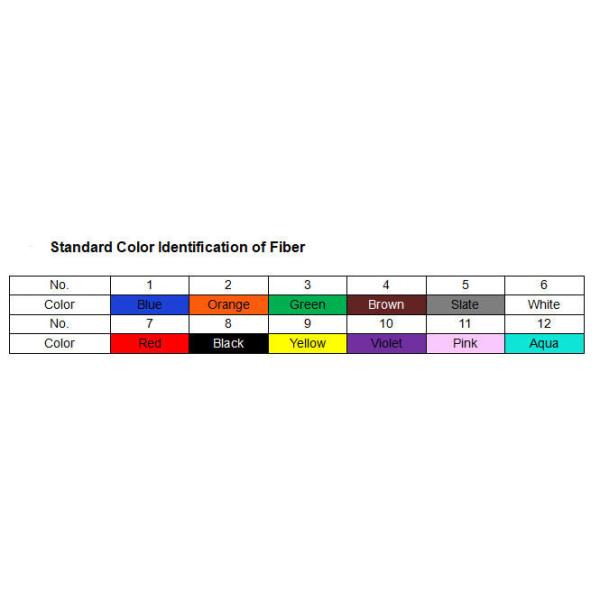

Color Of Loose Tube : Blue, Orange,Green , Brown,Red Etc

Maximum Span : 1500m

Installation Style : Self-Support Aerial

Highlight : self supporting fiber optic cable, adss cable

Contact Now

All Dielectric Self-Supporting ADSS Cable

Optical Fiber Cable ADSS

All-dielectric Self-support 6 Core Fiber Optic Cable ADSS Fiber Optic Cable Details

High Flexible Amaid Yarn ADSS Optical Cable 6 Core Non Metallic Fiber Optic Cable

Structure characters
Loose tube with non-metallic strengthen member.High flexible amaid yarn.Can work at electric field<=25KV/m in a long period

Properties
1. Up to 288 optic fibers
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.

Applicable Fields
1. Long distance telecom, LAN in high voltage area or access to telecom network;
2. For power transmission system, much thunder areas and high electro-magnetic inerference.

Technical Date:(for 24 core fiber, 800m span)

Fiber Optic Range	Span(M)	Out-diameter(MM)	Module(N/)	Linear Expanding Coefficient(1/K)	Weight(KG/KM)	Safely running strain(N)
Weather condistion:wind speed: 35m/s and 0mm ice thickness.
24	800	15.5	2.86X10	0.02X10	200	29680
Weather condistion:wind speed: 10m/s and 5mm ice thickness.
24	800	14.5	2.33X10	0.11X10	185	19600
