Lightweight Fiber Optic Pigtail Single Mode Simplex SC APC Fiber Pigtails

Name: Lightweight Fiber Optic Pigtail Single Mode Simplex SC APC Fiber Pigtails
Brand: MingTong
Price: 5 USD

Quality Lightweight Fiber Optic Pigtail Single Mode Simplex SC APC Fiber Pigtails for sale

Brand Name : MingTong

Certification : ISO

Place of Origin : Dongguan CHINA

Price : 5-200RNB/P

Payment Terms : L/C,T/T

Delivery Time : It depends on the actual situation

MOQ : 200

Packaging Details : cardboard box

Supply Ability : 2000 copies/Day

Name : Fiber Optic Pigtail Single Mode

Polish : UPC,APC

Fiber Type : SM/MM

Connector : SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO

Cable Jacket : PVC,LSZH,OFNR,OFNP

Highlight : SC APC Fiber Optic Pigtail, Simplex Fiber Optic Pigtail, single mode ofc pigtail

Contact Now

Fiber Optic Single Mode Simplex SC/APC Fiber Optic Pigtail

Lightweight Fiber Optic Pigtail Single Mode Simplex SC APC Fiber Pigtails Description

Fiber optic pigtails offer a rapid means of creating communication devices in the field. They are fashioned, produced, and evaluated in accordance with industrial protocols and performance requirements, ensuring that they fulfill even the most rigorous mechanical and performance specifications.

Features

We offer SC, LC, FC, MU, ST, MT-RJ, and E2000 connectors.

Our polishing meets superior qualified standards for PC, APC, UPC, and SPC.

You have the option of choosing cables with a diameter of φ0.9mm, φ2.0mm, or φ3.0mm.

We have single mode (9125) or multi-mode (50/125 or 62.5/125) fibers available.

We offer fiber bunches, ribbon fan-outs, and pigtails.

Our connectors are available in simplex and duplex configurations.

Our connectors have low insertion loss and high return loss.

Our connectors are highly exchangeable and durable. We welcome customized specifications.

Size Information

Item	SM(Single Mode)			MM(Multimode)
Fiber Cable Type	G652D/G655/G657A1/G657A2			OM1	OM2/OM3/OM4
Fiber Diameter (um)	9/125			62.5/125	50/125
Cable OD (mm)	0.9/1.6/1.8/2.0/2.4/3.0
Endface Type	PC	UPC	APC	UPC	UPC
Typical Insertion Loss (dB)	<0.2	<0.15	<0.2	<0.1	<0.1
Return Loss (dB)	>45	>50	>60	/
Insert-pull Test (dB)	<0.2		<0.3	<0.15
Interchangeability (dB)	<0.1		<0.15	<0.1
Anti-tensile Force (N)	>70
Temperature Range (ºC)	-40~+80

Product Tags:

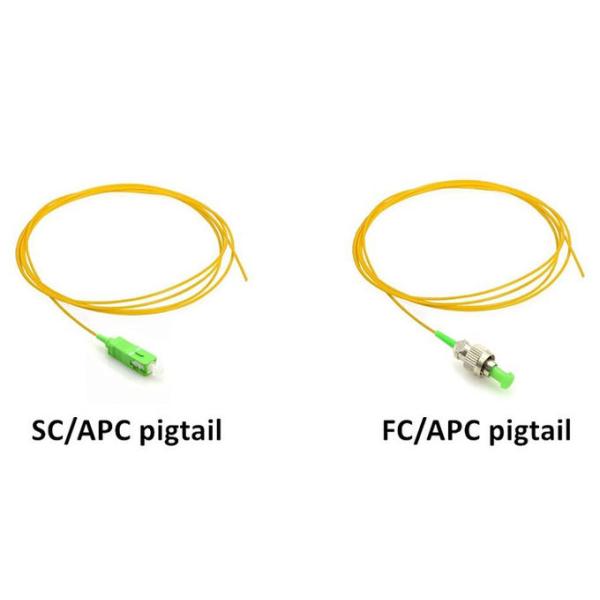

Lightweight Fiber Optic Pigtail Single Mode Simplex SC APC Fiber Pigtails Images
